Hydrostatic pressure in concrete floors can lead to coating failures like peeling, blistering, and delamination. Testing for moisture levels before applying coatings ensures durability and prevents costly repairs. Here’s what you need to know:

• What is hydrostatic pressure? It’s the upward force of water moving through porous concrete, often caused by high groundwater or poor vapor barriers.
• Why test for it? High moisture levels weaken the bond between coatings and concrete, leading to failure.
• Key tools for testing:
  • Relative Humidity Probes (ASTM F2170): Measure internal moisture levels. Costs range from $800 to $1,500.
  • Calcium Chloride Test Kits (ASTM F1869): Assess surface moisture vapor. Kits cost $200–$400.
  • Surface Tests: Quick checks using plastic sheets or rubber mats to spot moisture issues.

Testing steps:

1. Use ASTM-certified methods like in-situ probes or calcium chloride tests.
2. Prepare the area, drill test holes, and ensure proper environmental conditions.
3. Compare results to coating manufacturer’s moisture limits (e.g., RH below 75% or vapor emission rates under 3 lbs/1,000 sq ft/24 hrs).

If moisture levels are too high, address drainage, improve vapor barriers, or use moisture-tolerant coatings. Regular testing and maintenance can help prevent future issues and protect your investment.

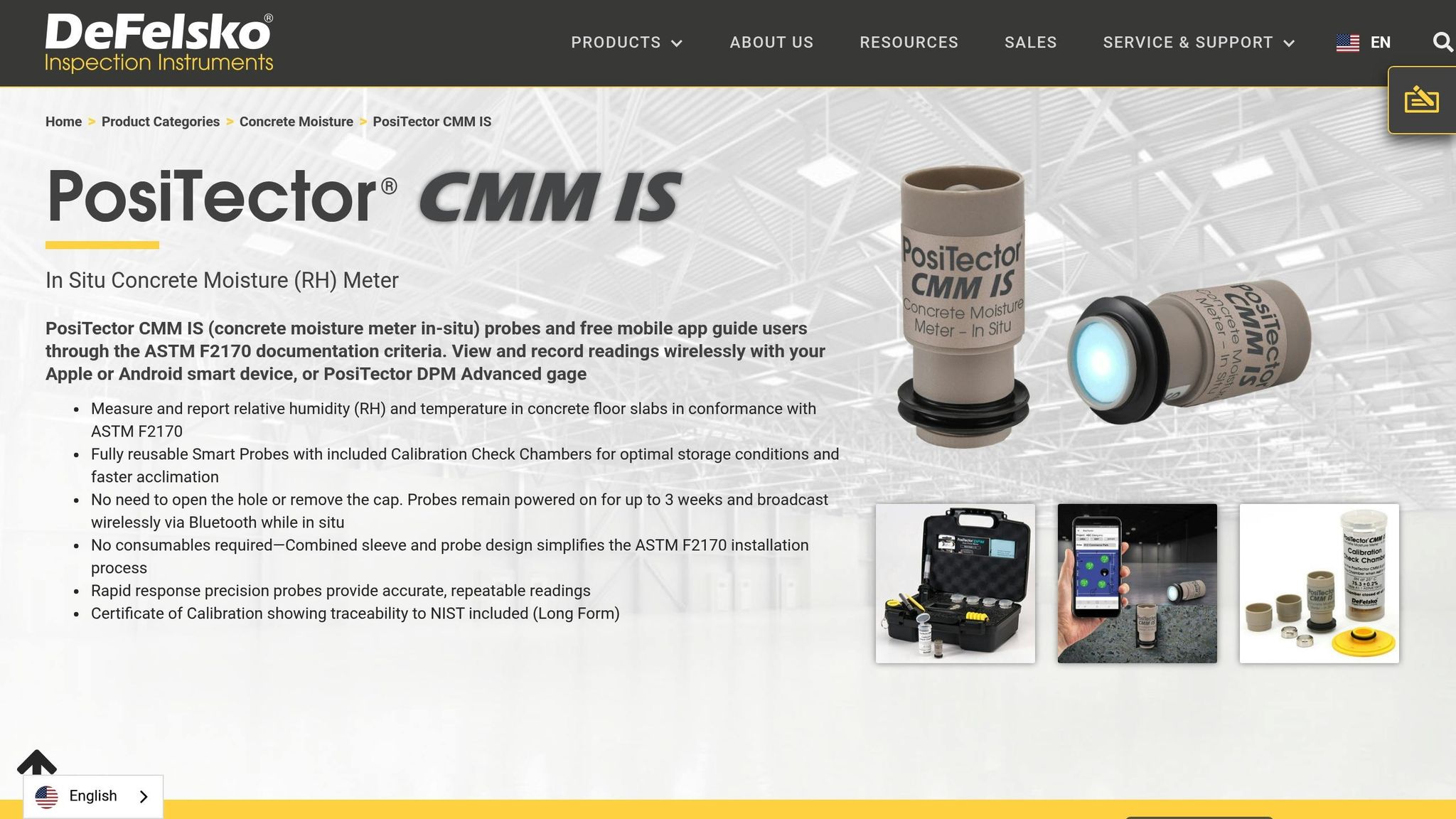

How to Measure Concrete RH (ASTM F2170) with the PosiTector CMM IS In-situ Concrete Moisture Meter

Tools and Equipment for Testing

Getting accurate hydrostatic pressure readings starts with using the right tools – specifically, ASTM-certified equipment. Most moisture testing methods rely on ASTM standards, which means your tools need to meet those requirements for reliable results.

Core Testing Tools

Concrete Relative Humidity Probe Kits are considered the go-to option for testing moisture levels within concrete slabs. These kits typically include digital probes, sleeves, and sealing caps, allowing you to measure moisture deep within the slab. For slabs drying from one side, insert the probes at 40% of the slab’s thickness; for two-sided drying, use 20%. Expect to spend between $800 and $1,500 for a high-quality kit.

Calcium Chloride Test Kits provide a more affordable way to measure surface moisture vapor. These kits come with pre-weighed dishes, adhesive domes, and precision scales. The calcium chloride in the dishes absorbs moisture from the slab’s surface over 60 to 72 hours. A kit costs around $200 to $400 and is capable of performing multiple tests.

Digital Hygrometers pair with probe systems to deliver real-time humidity readings. For dependable results, choose models with a precision rating of ±2% RH. Regular calibration with salt solutions is essential to maintain accuracy.

Surface Moisture Testing Materials include polyethylene film sheets (typically 18 inches by 18 inches) and rubber mats, which are used for quick, initial checks. These materials, combined with duct tape to create airtight seals, can help identify areas that may need further testing.

Core Drilling Equipment is necessary for installing humidity probes. A rotary hammer drill with masonry bits (⅝-inch to ¾-inch diameter) is ideal for creating the required holes. Use a shop vacuum to remove dust during the process. Regular calibration of drilling tools ensures consistent results.

Measurement Standards and Units

Proper operation and calibration of your equipment play a critical role in obtaining accurate measurements. Here’s what to know about the key metrics:

• Relative Humidity (RH): Expressed as a percentage, RH levels should typically fall between 75% and 85% before applying coatings, though exact thresholds depend on the coating system in use.
• Moisture Vapor Emission Rates: Measured in pounds per 1,000 sq ft per 24 hours, acceptable rates usually range from 3 to 5 lbs. Testing should be conducted with concrete temperatures between 65°F and 85°F.
• Concrete Thickness and Probe Depth: Measurements are in inches. For example, in a 4-inch slab drying from the top only, probes should be installed at 1.6 inches deep. For a 6-inch slab, the depth should be 2.4 inches, following the 40/20 rule.
• Hydrostatic Pressure: Measured in pounds per square inch (psi). While direct measurement requires specialized tools, the moisture tests discussed here can provide indirect insights into pressure levels that could impact coating performance.

Ambient conditions, such as temperature and humidity, can also influence test results, so it’s important to monitor these factors during testing.

Lastly, ensure all equipment is calibrated according to the manufacturer’s recommendations – typically every 6 to 12 months for professional use. Keep calibration certificates on hand, as some coating warranties may require proof of properly calibrated tools.

Step-by-Step Testing Methods

To accurately measure moisture in concrete slabs, follow these testing methods using ASTM-certified equipment in consistent environmental conditions.

In-Situ Relative Humidity Probe Method (ASTM F2170)

This method measures the equilibrium relative humidity within the concrete slab, providing a clear understanding of internal moisture levels.

• Site Preparation and Drilling: Start by cleaning the test area with a wire brush or scraper to remove debris and contaminants. Mark drilling locations according to ASTM F2170 guidelines, ensuring proper spacing and placement near slab edges and joints. Use a rotary hammer drill with a masonry bit to create test holes at the specified depth.
• Probe Installation and Sealing: Insert a plastic sleeve into each drilled hole, ensuring it sits flush with the slab surface. Seal the sleeve with a cap and allow 24 hours for equilibration.
• Taking Measurements: After the equilibration period, remove the cap and insert a calibrated humidity probe. Wait 5 to 10 minutes for the reading to stabilize, then record the relative humidity percentage. Verify that the results meet the coating manufacturer’s moisture limits.
• Environmental Control: Avoid testing near windows, vents, or areas exposed to direct sunlight to ensure accurate results.

Once this method is complete, consider an additional test to measure surface moisture vapor.

Calcium Chloride Vapor Emission Test (ASTM F1869)

This test measures the amount of water vapor emitted from the concrete surface over 24 hours, with results expressed in pounds of water vapor per 1,000 square feet.

• Environmental Conditioning: Conduct the test under working conditions, maintaining temperatures between 65°F and 85°F and relative humidity between 40% and 60% for at least 48 hours before and during testing. If this isn’t feasible, ASTM F1869 allows for conditions of 75°F ± 10°F and 50% ± 10% relative humidity.
• Surface Preparation: Clean the slab thoroughly to remove debris, adhesives, curing agents, and other contaminants. Use methods like shot-blasting, grinding, or wire-brushing, followed by vacuuming to eliminate dust.
• Test Kit Setup: Weigh each calcium chloride dish using a precision scale and record the initial weight. Place the dish at the center of the test area and cover it with the supplied plastic dome, sealing the edges completely to prevent air leaks.
• Monitoring and Final Measurements: Leave the test kit undisturbed for exactly 24 hours. Afterward, remove the dome and reweigh the dish. The weight gain reflects the moisture absorbed from the concrete. Use the provided formula to calculate the vapor emission rate and compare it to the coating manufacturer’s guidelines.

For a quicker assessment, surface moisture tests can help identify potential problem areas.

Surface Moisture Test Methods

These methods provide a fast way to spot potential moisture issues before diving into more detailed evaluations.

• Plastic Sheet Test: Tape an 18-inch by 18-inch square of 6-mil polyethylene film to the concrete surface, sealing all edges with duct tape. After 16 to 24 hours, remove the plastic and check for condensation underneath or darkened areas on the concrete. Either sign indicates the presence of moisture.
• Rubber Mat Method: Place a rubber mat or dense foam pad on the surface, ensuring full contact with the concrete. After 24 hours, lift the mat and examine the area beneath for dampness or discoloration, which could signal elevated moisture levels.
• Visual Inspection: Look for signs like efflorescence (white mineral deposits), discoloration, or active water seepage. Photograph and mark affected areas for further investigation.

Surface tests work best when performed in the same conditions planned for the coating application. They help pinpoint areas requiring further testing, ensuring accurate moisture evaluation and effective hydrostatic pressure management.

sbb-itb-a0e5ae3

How to Read Test Results and Fix Problems

Interpreting test results accurately is critical to avoiding expensive mistakes. As outlined in the testing steps, the goal is to identify when moisture levels exceed acceptable limits and take the necessary steps to address the issue.

Test Result Thresholds

For concrete flooring, moisture levels are typically measured using relative humidity (RH) and moisture vapor emission rates. The ASTM F2170 in-situ probe method is commonly used to measure RH. For most coating applications, RH should stay below 75%. Some high-moisture adhesives can handle up to 99% RH, and floating or interlocking resilient floors can perform well at over 90% RH.

If RH readings reach 96%, it often points to secondary moisture issues like hydrostatic pressure or poor drainage, which require immediate attention.

The ASTM F1869 calcium chloride test measures vapor emission rates. Standard epoxy coatings generally require emission rates to stay under 3 pounds per 1,000 square feet over 24 hours. Some premium moisture-tolerant systems can accommodate higher rates, but always check the manufacturer’s guidelines before moving forward.

Surface moisture tests can also provide clues. For instance, if you find condensation under plastic sheeting or notice darkened areas on the concrete after 16–24 hours, it’s a sign of high moisture levels that need further investigation.

"The challenge with moisture testing is that the real threat is not necessarily true hydrostatic pressure but rather high relative humidity deep within the concrete slab". Always consult the recommendations from your flooring or adhesive manufacturer, as acceptable moisture levels can vary significantly depending on the product and the slab’s condition.

These thresholds serve as a guide for determining the next steps, which are outlined below.

What to Do About High Hydrostatic Pressure

If test results show moisture levels above safe limits, immediate action is essential. Start by consulting waterproofing or structural engineers to evaluate and address the issue [10–13]. If the problem directly affects flooring, reach out to a qualified installer or a leak detection expert.

For long-term solutions, improving exterior drainage is often the most effective approach. This might include installing or upgrading gutters that extend several feet away from the foundation, regrading the landscaping to slope away from the structure, or adding an exterior French drain system with perforated pipes set in gravel-filled trenches [10,12].

Interior drainage solutions may also be necessary. These can include drilling weep holes at the base of interior walls (for block foundations) or installing an interior drain tile system with perforated pipes in gravel trenches along the basement’s perimeter.

For temporary flooring solutions, consider using moisture-tolerant adhesives or dry installation methods, such as floating or interlocking floor designs.

At Croc Coatings, we’ve seen firsthand how managing moisture effectively can make or break a project. Our Penntek Evolution coating system is designed to handle tough moisture conditions better than traditional epoxy systems. However, even the most advanced coatings require proper substrate preparation and moisture control to perform at their best.

Prevention and Long-Term Maintenance

After thorough testing and addressing existing issues, the next step is to focus on prevention to ensure your floors stay in top condition for years to come. Tackling hydrostatic pressure problems involves consistent monitoring, proper drainage systems, and the use of moisture-resistant coatings.

Regular Monitoring and Testing

Keeping an eye on vulnerable areas is key. Spaces like basements, ground-level slabs, and areas near water sources should undergo testing at least once a year. In regions with heavy rainfall, testing every six months is a smarter approach. Use the results from initial tests as a baseline to detect any changes early.

Keep detailed records of testing dates, locations, and measurements. This can help pinpoint potential issues with drainage or waterproofing. Also, note any changes to the environment, such as landscaping updates or gutter adjustments, as these can impact how water flows around your property. Regular monitoring ensures you can act quickly if protective measures need updating.

Moisture-Resistant Coatings

Modern coatings are a powerful defense against moisture. For example, two-component, 100% solids epoxy moisture vapor barrier coatings are particularly effective in controlling moisture vapor emissions in high-risk areas like basements or warehouse floors. These coatings are designed to handle the challenges posed by hydrostatic pressure.

At Croc Coatings, we’ve taken moisture resistance a step further with our Penntek Evolution system. This advanced coating is four times stronger than traditional epoxy and features cutting-edge chemistry that ensures a durable bond, even in tough conditions. It’s ideal for protecting garage floors, basements, and industrial spaces across North Idaho and Eastern Washington. Plus, with UV stability and antimicrobial properties, it helps prevent mold growth and surface wear over time.

Custom Solutions for High-Moisture Areas

In some cases, standard coatings may not be enough. For areas with persistent moisture issues, customized solutions are essential to maintain the integrity of the coating.

Croc Coatings offers a one-day installation process that minimizes the risk of moisture interfering with the curing process. This ensures a strong bond and long-lasting performance. We’re so confident in our advanced coating systems that we back them with a lifetime warranty.

For commercial and industrial settings, slip-resistant coatings provide both protection and added safety in wet conditions. To keep these coatings in top shape, annual visual inspections are recommended. This allows you to spot and repair any damage from impacts or wear before moisture has a chance to compromise the barrier.

Conclusion and Key Points

Testing for hydrostatic pressure in concrete floors is a smart way to protect your investment and ensure long-term durability. Whether it’s a residential garage, a basement, or a commercial warehouse, understanding the moisture levels beneath your concrete can save you from costly repairs and coating failures.

The ASTM F2170 method is a dependable way to measure moisture levels and determine if your concrete is ready for treatment. For quicker checks, the calcium chloride vapor emission test (ASTM F1869) is a great option for assessing surface moisture. Each method has its strengths, and knowing which one to use helps you get the most accurate results. These insights enable you to take preventive measures before problems arise.

Regular testing can save you money in the long run. High-risk areas like basements or ground-level slabs should be tested routinely – annually in most climates or twice a year in regions with heavy rainfall. This proactive approach helps identify potential issues early, avoiding expensive fixes later.

Once testing is complete, applying advanced coatings is the next step. Croc Coatings’ Penntek Evolution system stands out with its impressive strength – four times that of traditional epoxy. It also offers UV stability, antimicrobial properties, and a quick, one-day installation process that reduces moisture-related delays. Plus, it comes with a lifetime warranty, making it a reliable choice for homes and businesses in North Idaho and Eastern Washington.

Moisture-resistant coatings are a worthwhile investment. Spending on professional testing and high-quality coating systems upfront can lead to decades of hassle-free performance. Whether you’re safeguarding a garage floor or an industrial workspace, proper hydrostatic pressure testing combined with durable coatings ensures your concrete surfaces stay functional, visually appealing, and long-lasting.

FAQs

How can I tell if my concrete floor might have high hydrostatic pressure before testing?

If you’re concerned about high hydrostatic pressure affecting your concrete floor, start by examining its location and surroundings. Floors that are below ground level, close to the water table, or situated in areas with poor drainage are more prone to these issues. Key indicators to look out for include visible moisture buildup, dark patches on the concrete, water seeping through, or cracks where the floor meets the walls.

Environmental conditions can also contribute. Factors like heavy rainfall, recent flooding, or spaces with inadequate ventilation can heighten the risk. If you notice any of these warning signs or your floor is in a potentially vulnerable area, testing is a smart next step to understand the problem better and determine how to address it.

What are the best long-term ways to control hydrostatic pressure in concrete floors?

Managing hydrostatic pressure in concrete floors involves using multiple techniques to prevent moisture buildup and maintain the structure’s integrity over time. One effective approach is installing drainage systems – like French drains or interior perimeter drains – to channel groundwater away from the foundation, easing the stress on the concrete.

Another key step is applying waterproofing measures, such as vapor barriers or specialized coatings, to create a protective shield against moisture intrusion. Proper site grading around the building is equally important, as it ensures water flows away from the foundation, reducing the likelihood of future problems.

To combine functionality with aesthetics, you might explore modern concrete coating systems. These coatings are designed to handle hydrostatic pressure while also improving the overall look of your floors.

What environmental factors can impact the accuracy of moisture tests on concrete floors?

Environmental factors have a big impact on how accurate moisture tests on concrete floors turn out. Things like ambient temperature, humidity, airflow, and condensation can all skew the results. For instance, if the humidity is high or there’s limited air circulation, the moisture readings might end up higher than they actually are.

To get reliable results, it’s crucial to conduct tests in a stable and controlled environment. The testing conditions should ideally match the typical environment the concrete will face once it’s in use. If you’re unsure about the process or want expert guidance, reaching out to professionals like Croc Coatings, who specialize in concrete surfaces and coatings, can be a smart move.
