Slip Resistance Standards for Concrete Floors

February 10, 2025

Image 55C0F50E9125Ac4D7E37087Cea101362

Concrete floors can be slippery and dangerous without proper treatment. To prevent accidents, safety standards like OSHA and ADA require specific friction levels for different surfaces. Here’s what you need to know:

  • OSHA: Requires a Static Coefficient of Friction (SCOF) of ≥0.5 for workplace floors.
  • ADA: Requires ≥0.6 SCOF for level surfaces and ≥0.8 SCOF for ramps.
  • ANSI A137.1: Recommends a Dynamic Coefficient of Friction (DCOF) of ≥0.42 for wet surfaces.
  • Penalties for non-compliance can reach $15,625 per violation.

Key Testing Methods:

  • Pendulum Test: Simulates real-world conditions for wet and dry surfaces.
  • Tribometer Test: Measures DCOF with motorized precision, ideal for wet indoor areas.

Surface Performance:

  • Unfinished concrete has a high dry SCOF (0.8) but drops to 0.16-0.35 when wet.
  • Polished concrete and textured finishes can improve wet slip resistance significantly.

Regular testing, proper coatings, and maintenance are essential to meet these standards and keep surfaces safe.

Floor Slip Resistance Test

Major Standards and Regulations

Concrete floor safety is guided by three key frameworks, each building on earlier requirements:

OSHA and ADA Guidelines

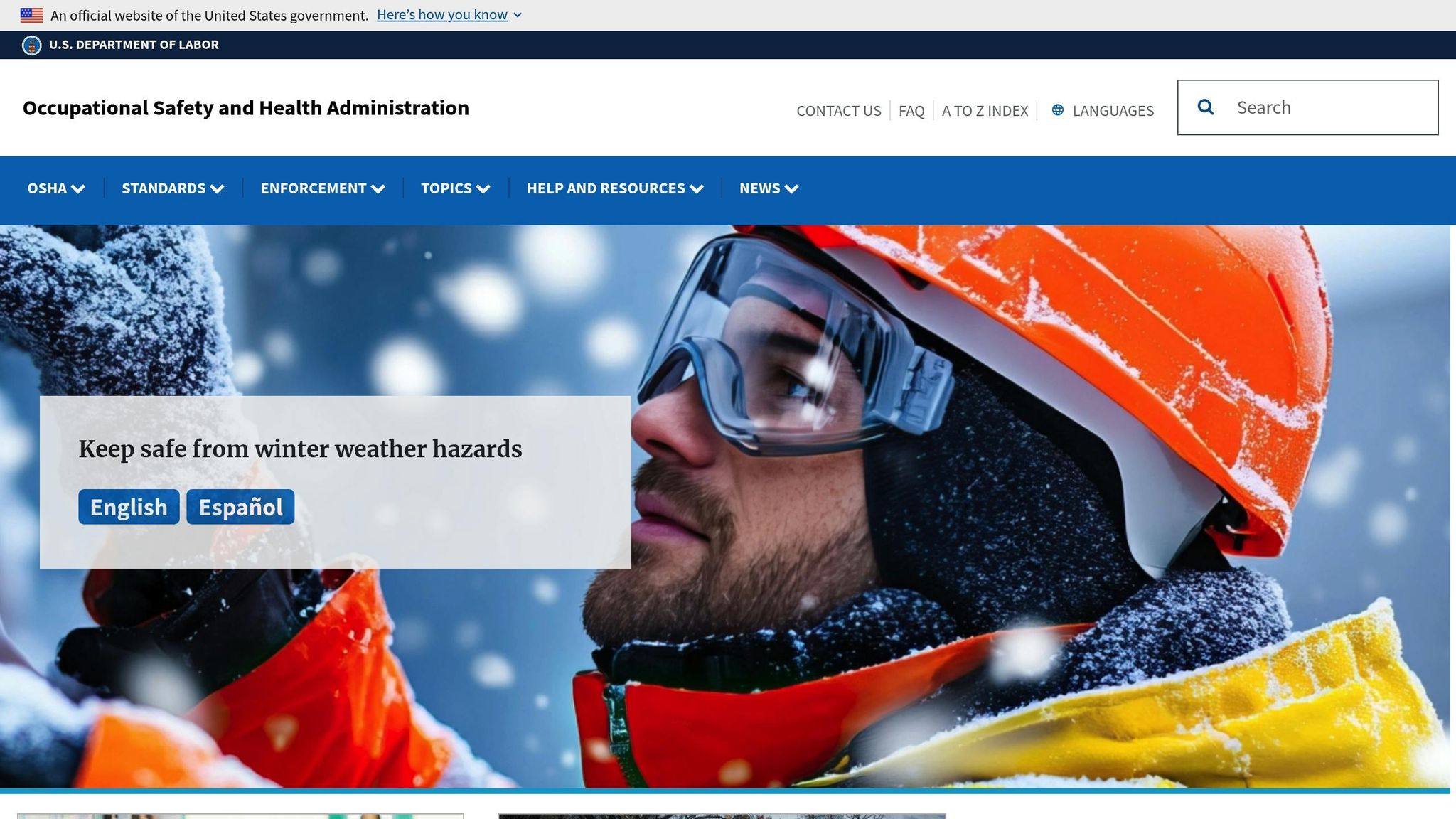

Osha

OSHA sets a minimum Static Coefficient of Friction (SCOF) of 0.5 for workplaces. The ADA requires 0.6 SCOF for level surfaces and 0.8 for ramps [3][4]. These standards are critical for ensuring safety:

"Surfaces with wet Static Coefficient of Friction ≥0.6 reduce slip claims by 50-90%." – Russ Kendzior, National Floor Safety Institute CEO [9]

ASTM Test Methods

ASTM outlines two main testing methods to confirm slip resistance compliance:

  • ASTM C1028: This method supports both field and lab testing using horizontal pull meters. It’s especially helpful for contractors checking compliance directly onsite [4][6].
  • ASTM D2047: Designed for lab-only testing, this method evaluates pre-production materials under controlled conditions using specialized polish machines [1][4].

Polished concrete floors often surpass these standards. For instance, high-gloss finishes achieve a 0.70 SCOF (dry) and 0.61 SCOF (wet) based on Sellmier FSC2000 testing [1]. Surfaces meeting NFSI 101-A criteria (≥0.6 wet SCOF) have been linked to noticeable reductions in slip-related incidents [9].

Slip Resistance Measurement Methods

Modern techniques for testing slip resistance ensure that concrete surfaces meet safety requirements. Each method examines surface friction under various conditions, offering key insights into safety performance.

Pendulum Testing Process

The wet pendulum test is a widely used method for measuring slip resistance directly on-site. It works by swinging a rubber slider, attached to a spring-loaded pendulum arm, across a wetted surface area of 126mm [2].

"The wet pendulum test is considered the most viable method for in-situ testing as it can simulate both barefoot and shoe-wearing conditions while testing actual contaminants." – Concrete Colour Systems Technical Team [2]

This test requires a minimum testing area of 1m² and can assess a variety of surface contaminants, not just water. Its ability to mimic real-world conditions helps ensure compliance with accessibility and safety guidelines, such as ADA and OSHA ramp standards [2][6].

Tribometer Measurement Systems

Tribometers measure the Dynamic Coefficient of Friction (DCOF) with high precision. Devices like the BOT-3000E use motorized sensors and standardized sliders to simulate foot traffic and assess surface friction [5][7].

For wet indoor surfaces, a minimum DCOF of 0.42 is necessary [5]. These measurements align with ANSI A137.1 standards, ensuring surfaces meet safety requirements. Information from these tests can also guide decisions on surface coatings, as discussed in later sections.

Wet and Dry Surface Tests

In addition to pendulum and tribometer methods, testing under both wet and dry conditions highlights the importance of surface treatments. For example, unfinished concrete surfaces show a stark difference in safety performance, with the Static Coefficient of Friction (SCOF) dropping from 0.8 when dry to just 0.16 when wet [3][9]. Failing these tests could result in steep OSHA penalties of up to $15,000 per violation.

Experts suggest the following:

  • Testing surfaces with various contaminants and conducting retests after applying treatments
  • Taking multiple measurements across different areas to ensure consistent results [4]
sbb-itb-a0e5ae3

Elements Affecting Slip Resistance

Testing methods help pinpoint risks, but the surface characteristics of concrete floors are what ultimately influence compliance results.

Surface Types and Coating Options

The type of surface finish plays a major role in how slip-resistant a concrete floor will be. For example, unfinished concrete starts with solid traction, boasting a dry Static Coefficient of Friction (SCOF) of 0.8. However, this can drop sharply when a sealant is applied [3]. Different treatments offer varying levels of slip resistance:

Surface Type Dry SCOF Wet SCOF
Unfinished Concrete 0.8 0.16-0.35
Polished Concrete (3000-grit) 0.70 0.61
Broom Finished 0.85 0.40

Textured finishes, like those using aluminum oxide or polymer grits, can boost wet SCOF by up to 40%. Meanwhile, silica-aggregate systems are especially effective in areas prone to moisture, such as pool decks and commercial kitchens [9].

Surface Conditions

Environmental factors and contaminants can drastically alter slip resistance. Water, for instance, is a common hazard, reducing concrete’s SCOF from 0.8 to as low as 0.16 [3]. Oil contamination is even more dangerous, with pendulum testing showing up to a 35% reduction in BPN compared to water-only surfaces [2][10].

To accurately assess slip resistance, these environmental conditions should be replicated during pendulum and tribometer testing. Some of the key factors that influence slip resistance include:

  • Exposure to freeze-thaw cycles
  • UV degradation
  • Chemical spills or exposure
  • Heavy foot or machinery traffic

For food service areas, it’s important to choose coatings that meet ADA wet SCOF standards to ensure safety under various conditions [8][10].

The choice of coating is essential for maintaining compliance. For instance, high-gloss polished concrete can meet kitchen safety requirements, with wet DCOF values reaching up to 0.61 [1].

Meeting Safety Standards

Coating and Additive Selection

The choice of coating plays a major role in ensuring surfaces remain compliant over time. To meet safety requirements, coatings must meet specific friction thresholds: 0.5 SCOF for OSHA and 0.6-0.8 DCOF for ADA standards [3][5].

Polyaspartic coatings are a reliable option as they provide consistent friction in both wet and dry conditions [1]. It’s also essential to address risks like moisture and contamination identified during surface condition evaluations.

"Products with SCOF above 0.5 aren’t automatically safe – wet condition testing is crucial." – Applied Flooring technical team [4]

When selecting coatings for slip resistance, focus on these key characteristics:

Surface Type Typical Wet DCOF & Applications
Crosshatch Patterns 0.65+ (Food Service)
Quartz-Enhanced 0.85+ (Ramps/Inclines)

Testing and Upkeep

To stay compliant, facilities should follow OSHA’s guidelines for regular testing. Quarterly pendulum tests are required, with immediate retesting after any surface changes [2][6]. High-traffic areas demand even more frequent checks, such as monthly tribometer tests for entrances and biweekly wet surface evaluations in moisture-prone zones [2][4].

Key maintenance practices include:

  • Daily cleaning using pH-neutral detergents.
  • Annual resurfacing by professionals.
  • Keeping NATA-accredited documentation for audits.

Conduct tests at temperatures between 20-25°C to avoid the 15-20% friction reduction caused by colder conditions [2][3]. For regions with seasonal weather, advanced thermoset coatings help maintain stable slip resistance year-round.

Conclusion: Safety Standards Compliance

Maintaining slip resistance on concrete surfaces requires a combination of careful coating selection, regular testing, and consistent maintenance. Properly treated surfaces can meet and exceed friction thresholds when the right strategies are applied.

For example, industrial coating systems that use polymer-modified resins mixed with specialized aggregates often achieve SCOF ratings over 0.8 in dry conditions [3], far surpassing OSHA’s minimum requirement of 0.5. These coatings not only meet safety standards but also provide durable performance.

To stay compliant, facilities should aim for 0.42 DCOF on level surfaces (tested quarterly) and 0.8 SCOF on ramps (tested biannually). These benchmarks align with OSHA and ADA guidelines, offering clear safety targets that are easy to monitor.

By using surface treatments like polyaspartic or epoxy-based thermoset coatings, facilities can ensure safety while maintaining design flexibility. Pairing these treatments with regular testing methods, such as pendulum or tribometer tests, helps protect users and operators while keeping surfaces in top condition.

A well-documented maintenance program with modern coatings not only ensures ongoing compliance but also balances safety with practical implementation. This approach delivers reliable, slip-resistant surfaces that are both functional and adaptable to facility needs.

FAQs

What is the slip resistance of concrete finishes?

The slip resistance of concrete finishes depends on the surface treatment and conditions. Unfinished concrete typically has a Static Coefficient of Friction (SCOF) of 0.8 in dry conditions [3], but sealed concrete tends to have lower friction. The most slippery scenario is wet concrete, where SCOF can drop as low as 0.16 [3].

Here’s a comparison of different concrete finishes:

Surface Type Dry SCOF Wet SCOF
Unfinished Concrete 0.8 0.16-0.42
High-Gloss Polished (3000-grit) 0.7 0.61
Textured/Stamped 0.6+ Varies; needs testing

Textured or stamped concrete can improve slip resistance due to added surface texture. However, these finishes must meet ADA standards, which recommend a SCOF of 0.6-0.8 for ramps.

For wet indoor areas, concrete surfaces should maintain a minimum Dynamic Coefficient of Friction (DCOF) of 0.42 [5]. Products like Croc Coatings’ Penntek Evolution system can achieve this, thanks to their mix of polymer resins and specialized aggregates.

When choosing a finish, it’s important to balance slip resistance with avoiding trip hazards. OSHA guidelines recommend quarterly testing protocols to ensure surfaces stay compliant [2][4].
