Top Abrasion Tests for Concrete Coatings

February 21, 2025

Image 931102Bb54Fe6Cb056Adde2E416E537C
  • Taber Abrasion Test: Measures wear resistance using rotating abrasive wheels. Best for controlled environments like industrial floors and commercial spaces.
  • Falling Sand Test: Simulates abrasion from falling particles. Ideal for outdoor or weather-exposed surfaces.
  • Forced Sand Impingement Test: Uses pressurized sand impacts to evaluate coatings under harsh industrial conditions.

Each test offers unique insights into how coatings perform under specific conditions. Use the comparison below to select the one that fits your needs:

Test Best For Strengths Limitations
Taber Abrasion Test Indoor, controlled settings Measurable results, industry standard Limited to flat surfaces, rotary wear only
Falling Sand Test Outdoor, vertical surfaces Cost-effective, mimics natural abrasion Less precise, vertical impact only
Forced Sand Impingement Harsh industrial environments Simulates real-world wear, detailed insights Complex equipment, higher cost

Choose the test that aligns with your application to ensure the coating meets durability demands.

Testing Concrete Durability: Abrasion Resistance with the Taber Abraser

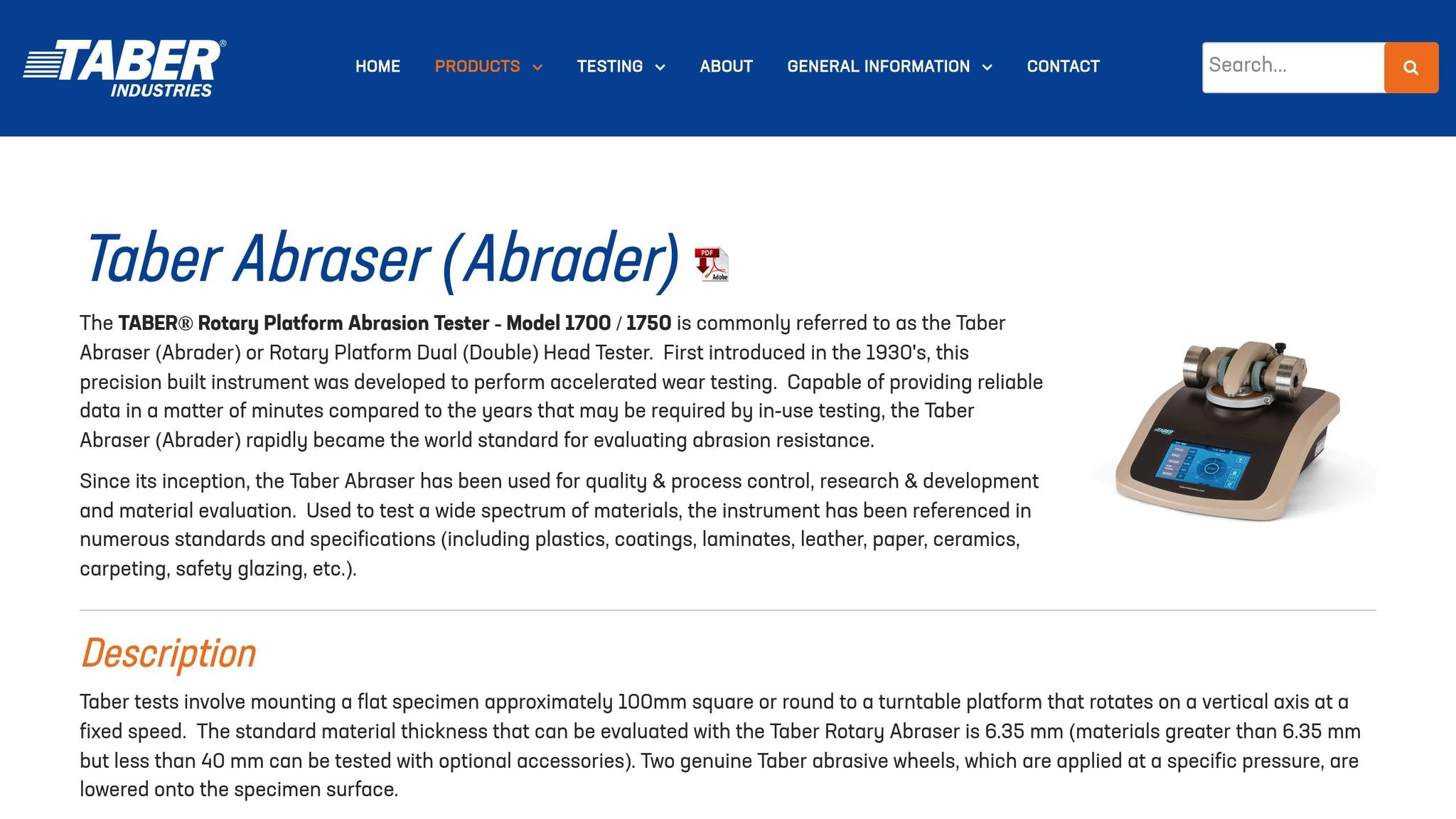

Taber Abraser

Common Abrasion Tests for Concrete

Abrasion tests for concrete coatings are designed to mimic wear and tear under various conditions, helping to evaluate how well these coatings hold up under stress and different environments. Here’s a closer look at the main tests used.

The Taber Abrasion Test measures how resistant a coating is to wear by tracking weight or thickness loss after a set number of cycles using a rotating abrasive tool.

The Falling Sand Test (ASTM D968) replicates wear caused by falling abrasive particles, making it ideal for assessing how coatings perform in outdoor conditions. The test measures material loss after controlled exposure.

The Forced Sand Impingement Test evaluates coatings by exposing them to pressurized abrasive impacts, simulating the constant stress found in industrial environments.

Here’s a quick comparison of these methods:

Test Method Primary Application Measurement Method Best For
Taber Abrasion Indoor/Controlled Environment Weight/Thickness Loss General Wear Resistance
Falling Sand Outdoor Exposure Material Loss Environmental Durability
Forced Sand Impingement Industrial Settings Impact Resistance Extreme Conditions

When analyzing test results, it’s important to match them to the specific demands of the application. For instance, strong performance in the Taber test doesn’t necessarily mean the coating will excel in outdoor environments.

To ensure durability across different conditions, industrial coatings are often subjected to multiple abrasion tests.

1. Taber Abrasion Test

Test Method

The Taber Abrasion Test, outlined in ASTM D4060-19, evaluates the wear resistance of coatings. It uses a Taber Abraser, which applies a controlled abrasive force through rotating wheels on a coated sample mounted on a rigid panel. The wear is measured by the loss of weight or thickness, making the test a trusted choice across various industries.

Applications

This test is especially useful in settings where coatings face heavy wear, such as:

  • Industrial floors subjected to machinery and equipment
  • Commercial spaces with constant foot traffic
  • Garage floors exposed to vehicle movement
  • Manufacturing facilities where equipment causes surface wear

Advantages

The Taber Abrasion Test provides key benefits for evaluating concrete coatings:

Advantage Description
Reproducibility Delivers consistent results under controlled lab conditions
Versatility Suitable for various coatings like epoxies, polyurethanes, and polyureas
Quantifiable Data Measures wear through weight or thickness loss
Industry Standard Widely used and recognized by coating manufacturers and specifiers

Disadvantages

The test has some limitations to consider. Regular resurfacing of the wheels is essential for accuracy, as wear on the wheels can affect results. Additionally, coatings with dense fillers may cause faster wheel wear, potentially skewing the data.

While the test focuses on rotary abrasion, it doesn’t replicate all types of wear encountered in real-life scenarios. Flexible coatings may also produce results that require careful interpretation, as their wear patterns differ from rigid coatings.

sbb-itb-a0e5ae3

2. Falling Sand Test

Test Method

The Falling Sand Test measures how well a concrete coating resists wear by using a controlled sand-drop process. In this test, a specific amount of sand is dropped from a set height onto a coated sample. After completing a series of cycles, the sample is examined for weight or thickness loss to determine its durability against abrasion.

This test adheres to guidelines from The Concrete Society‘s Technical Report No 34, which ensures consistent procedures across testing labs. These guidelines cover details like the type of sand, drop height, and measurement techniques.

Applications

This test is commonly used to evaluate coatings in various environments:

Environment Focus of Testing
Commercial Spaces Resistance to wear from heavy foot traffic
Industrial Facilities Durability against abrasive materials
Manufacturing Areas Protection against contact with granular substances
Walkways Endurance under daily pedestrian use

Advantages

The Falling Sand Test provides several practical benefits:

Advantage Details
Cost-Efficient Requires basic equipment, making it less expensive than other methods
Fast Results Delivers performance insights quickly
Easy to Perform Straightforward procedures with standard guidelines
Simulates Real Wear Recreates gradual particle abrasion effectively

Disadvantages

Despite its usefulness, this test has some limitations. It doesn’t fully represent all abrasion types, such as damage from heavy equipment or vehicles. Results can also vary depending on factors like sand particle size and how the surface was prepared.

Another drawback is its focus on vertical impact resistance, which doesn’t account for other wear patterns seen in real-world scenarios. To get a complete understanding of a coating’s durability, this test is often combined with other methods. For example, the next section discusses the Forced Sand Impingement Test, which evaluates performance under different stress conditions.

3. Forced Sand Impingement Test

Test Method

The Forced Sand Impingement Test checks how well concrete coatings hold up under abrasive conditions. It works by blasting a controlled stream of sand at the coating surface, ensuring consistent particle speed and impact angle throughout the test.

Key Parameters:

Test Parameter Purpose
Sand Particle Size Maintains consistent abrasion conditions
Impact Velocity Mimics real-world particle speeds
Impact Angle Simulates various debris contact angles
Test Duration Gauges long-term resistance to wear

Applications

This test is especially helpful for coatings used in harsh environments. Here’s how it applies to specific settings:

Environment Type Testing Focus
Outdoor Decks Resistance to wind-driven sand
Industrial Floors Withstanding airborne particle impacts
Manufacturing Areas Handling wear from material movement
High-Traffic Zones Endurance against multi-angle impacts

Advantages

This test stands out because it closely mirrors real-world conditions. Some of its benefits include:

  • Simulating environmental wear more accurately.
  • Testing coatings under different angles and velocities.
  • Offering detailed insights on how coatings perform under heavy particle impact.
  • Reflecting actual wear patterns seen in industrial environments.

Disadvantages

Despite its strengths, there are a few drawbacks to keep in mind:

Limitation Impact
Equipment Complexity Requires specialized tools
Standardization Lacks universal testing standards
Variable Results Depends on sand type and test settings
Cost More expensive than simpler tests

Careful calibration is essential for reliable results. This test works best when paired with other methods for a broader evaluation of coating performance.

Test Comparison Chart

Use this quick guide to select the most suitable abrasion test for your needs. Here’s how different tests align with practical industry uses:

Test Method Primary Applications Strengths Limitations Key Parameters
Taber Abrasion Test Commonly used for various flooring conditions • Provides measurable results
• Recognized industry standard
• Ensures consistent conditions		 • Limited to flat surfaces
• Doesn’t capture all wear patterns
• Requires specific sample sizes		 Measures wear with quantitative metrics
Falling Sand Test • Outdoor coatings
• Weather-exposed surfaces
• Vertical applications		 • Simple to set up
• Budget-friendly
• Mimics natural abrasion processes		 • Less precise
• Results can vary
• Limited standardization		 • Sand particle size
• Drop height
• Test duration
Forced Sand Impingement Test • Industrial settings
• Manufacturing areas
• High-wear zones		 • Allows multi-angle testing
• Simulates environmental conditions
• Offers detailed wear insights		 • Requires complex equipment
• Higher costs
• Needs skilled operators		 • Particle velocity
• Impact angles
• Sand type control

Testing Standards Compliance

Each method’s reliability is supported by specific standards and testing durations:

Test Method Referenced Standards Testing Duration
Taber Abrasion Test ASTM D4060-19 15–60 minutes
Falling Sand Test ASTM D968 30–120 minutes
Forced Sand Impingement Test ASTM G76 2–4 hours

These tests help manufacturers and contractors evaluate how well concrete coatings perform under various conditions. Choosing the right test depends on the coating system’s specific needs and the environment where it will be used.

Choosing the Right Abrasion Test for Concrete Coatings

Picking the right abrasion test is key to evaluating how durable a concrete coating is. Each test offers unique insights into performance, helping you make smarter decisions for your specific needs.

Taber Abrasion Test provides measurable wear data, making it great for predicting how long a coating might last. On the other hand, the Falling Sand Test is a budget-friendly option for gauging how coatings hold up in outdoor conditions. For harsher, industrial scenarios, Forced Sand Impingement highlights how coatings perform under intense stress.

When selecting a test, consider how the coating is used. Coatings with dense fillers or silica might show different wear patterns, so it’s important to align results with real-world applications. A great example is Croc Coatings‘ Penntek Evolution system, which is proven to be four times stronger than standard epoxy coatings.

Here’s a quick guide to match tests with your requirements:

  • Taber Abrasion Test: Ideal for gathering baseline performance data.
  • Falling Sand Test: Best for evaluating outdoor durability.
  • Forced Sand Impingement Test: Tailored for demanding industrial environments.
